Record it before you rebuild.

A capture records what a site does at each size, in its states and in motion, before anything is rebuilt. This one covers our home page at three widths, five scroll stops, the menu and button states, a motion check, the requests and weight, and the structure.

Our own site, before and after, captured 21 October 2026.

3page widths: 390, 768 and 1440 pixels
5scroll positions on a phone
4states: menu, link hover, button hover, button tap
47network requests logged, 28 before and 19 after

Before is the home page live at gravenreachmedia.com today, captured over the network. After is the build that replaces it, captured on our own machine before it is deployed. Both were opened in Chrome. One client’s name and card on the old site are blurred in the before images.

01 · Side by side

The whole page, both builds.

Each frame holds the full length of the page as the browser drew it. Scroll inside a frame, or open it to full length.

At 390 pixels, a phone

7,048 px long before · 10,392 px after
Before · live site

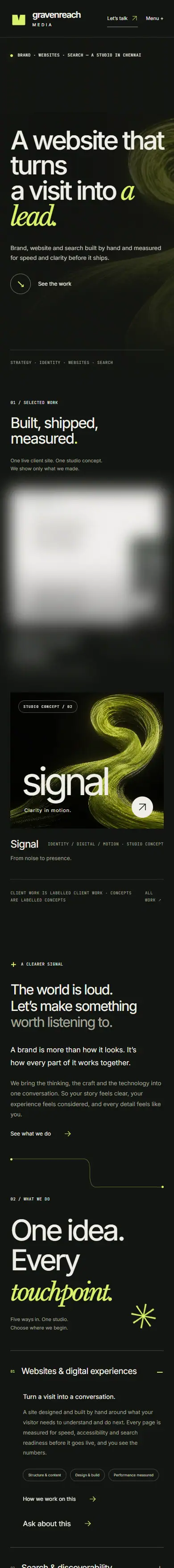

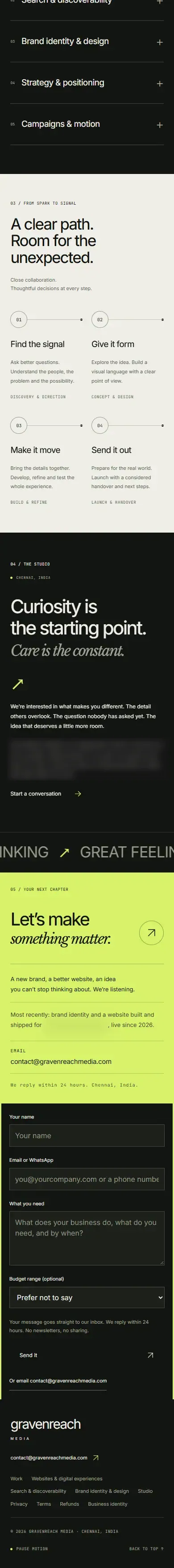

The old home page at phone width, top half: a dark page with a pale green swirl, headline A website that turns a visit into a lead, then selected work. The old home page at phone width, bottom half: process steps, studio note, contact form and footer on dark grounds.
After · new build

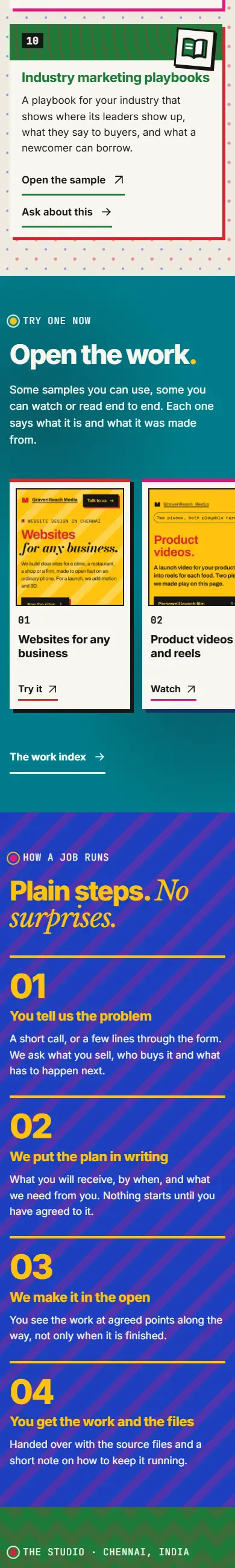

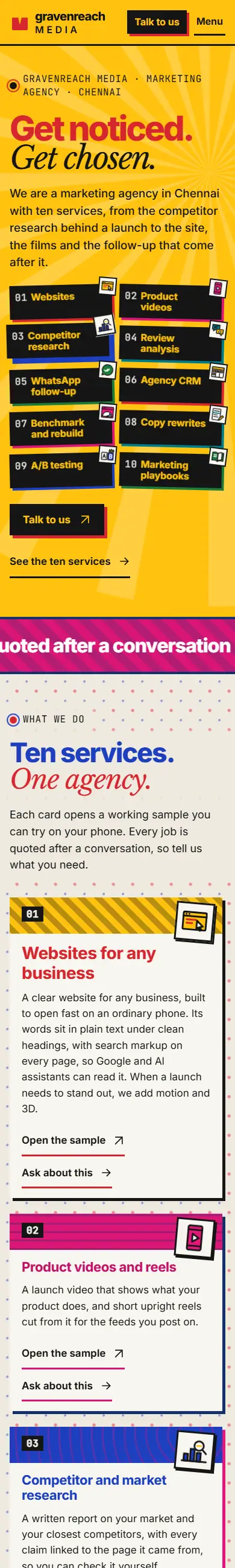

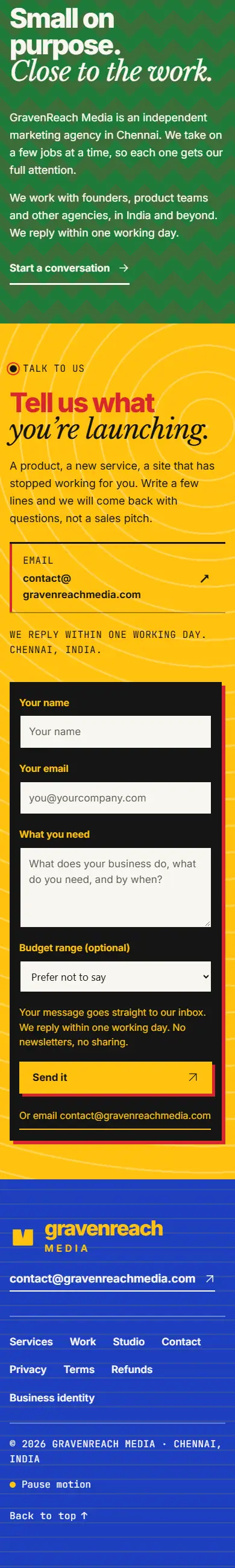

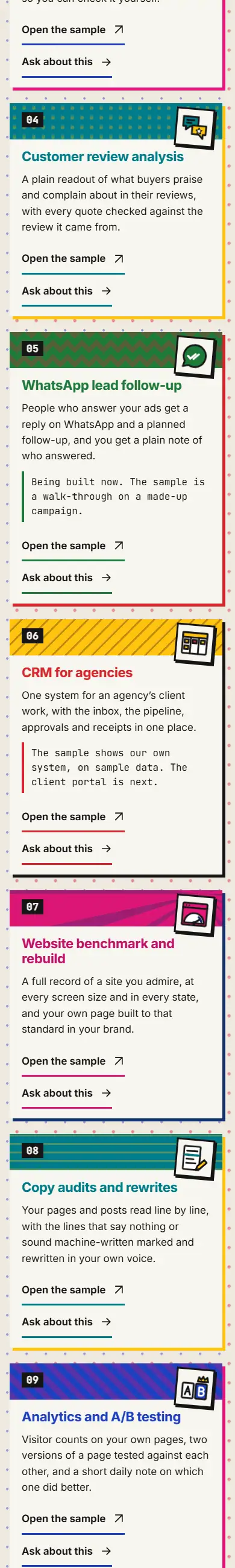

The new home page at phone width, first quarter: yellow hero with Get noticed, Get chosen and the start of the ten services. Second quarter: the ten services as cards on a pale ground. Third quarter: the work section on teal and the four-step process. Last quarter: the studio note, contact form and footer.

On a phone the old page is dark from top to bottom and runs 8.4 screens. The new one changes colour at every section and runs 12.3 screens, most of the extra length being the ten service cards. Neither page scrolls sideways at any of the three widths.

At 1440 pixels, a laptop

6,274 px long before · 7,332 px after
Before · live site

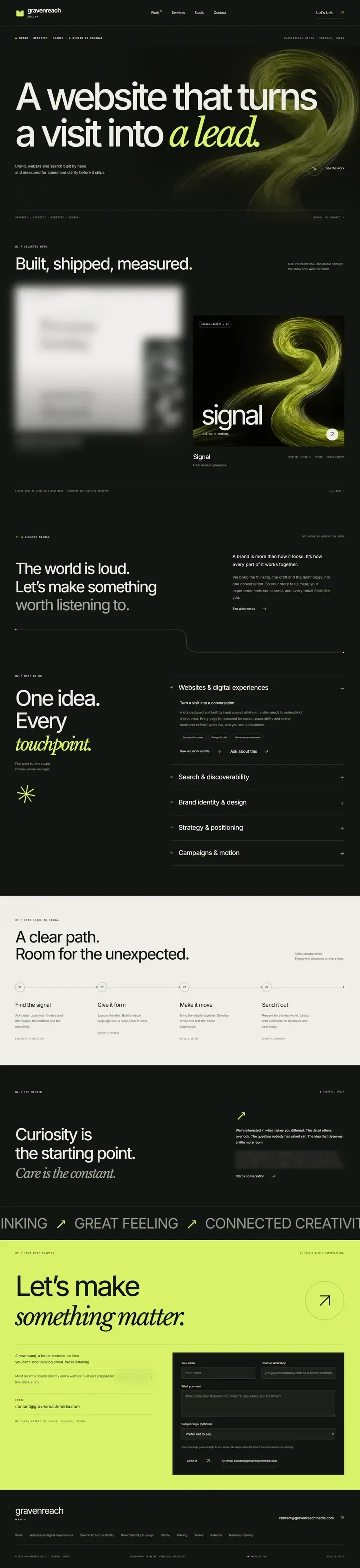

The old home page at laptop width, shown at half size: dark sections from hero to footer.
After · new build

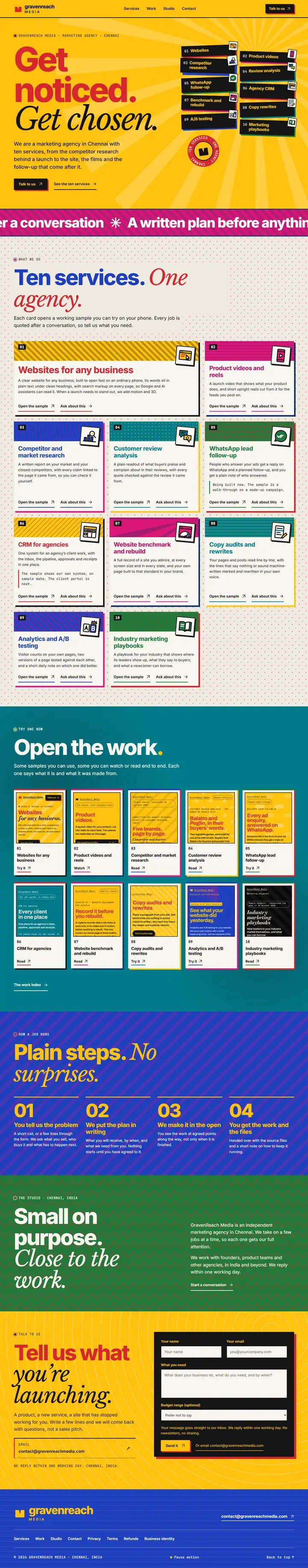

The new home page at laptop width, shown at half size: yellow, pale, teal, green and blue sections in turn.

At 768 pixels, a tablet

6,576 px long before · 7,948 px after
Before · live site

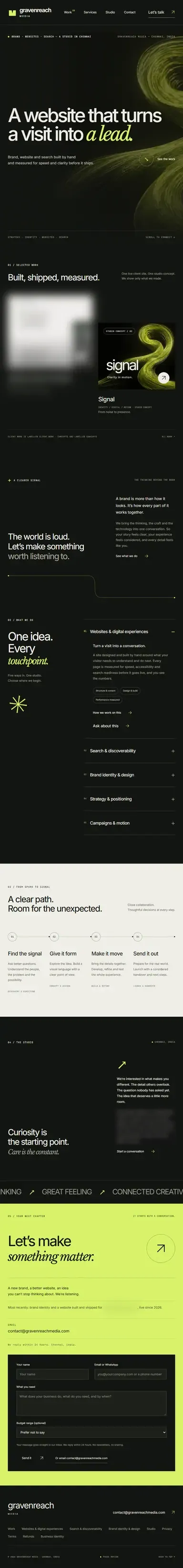

The old home page at tablet width, shown at half size.
After · new build

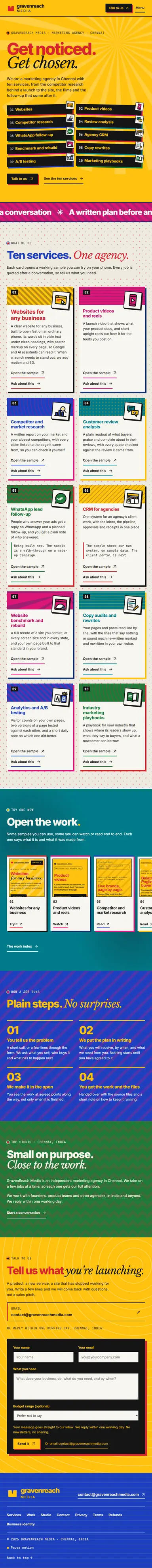

The new home page at tablet width, shown at half size.
02 · The scroll, on a phone

Five stops down the page.

The phone screen at the top, a quarter of the way down, halfway, three quarters and the bottom. Before sits above after at each stop, so the same point in each page is read together.

Swipe the strip sideways to see all five stops.

0%
Before

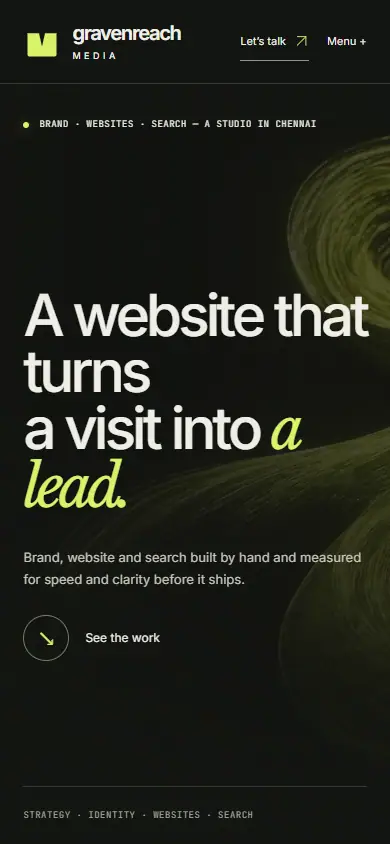

Before, top of page: dark hero with the headline about a website turning a visit into a lead.
After

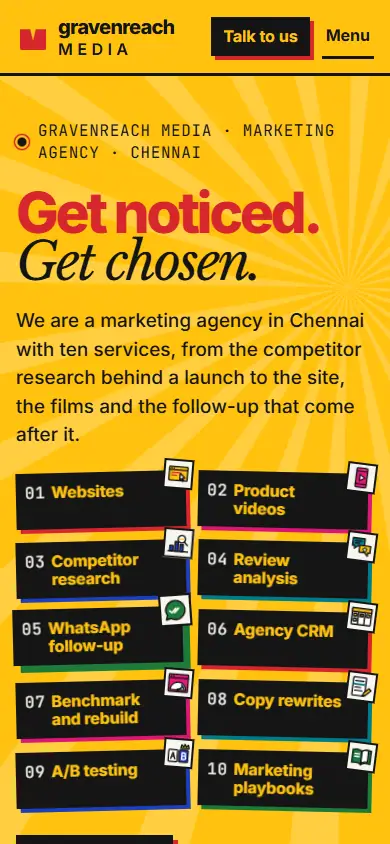

After, top of page: yellow hero, Get noticed, Get chosen, with the Talk to us button.
25%
Before

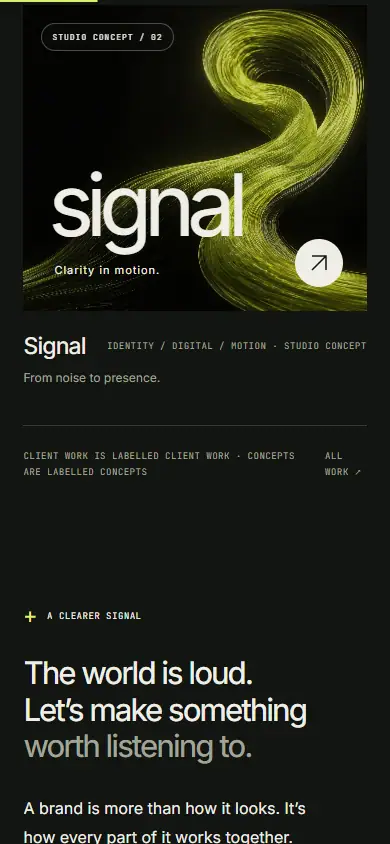

Before, a quarter down: the selected work cards.
After

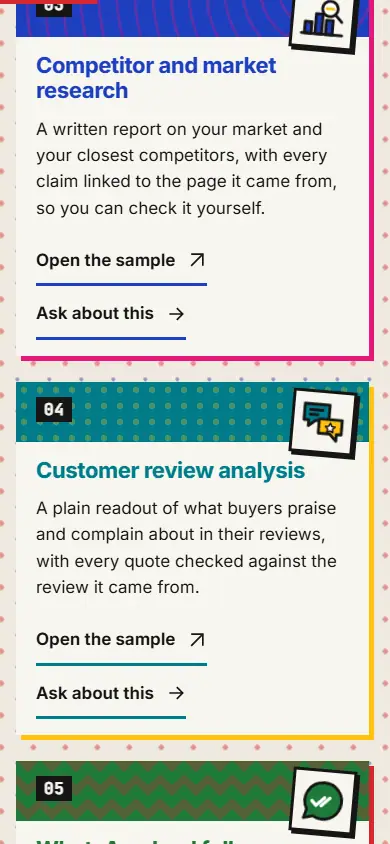

After, a quarter down: service cards on the pale ground.
50%
Before

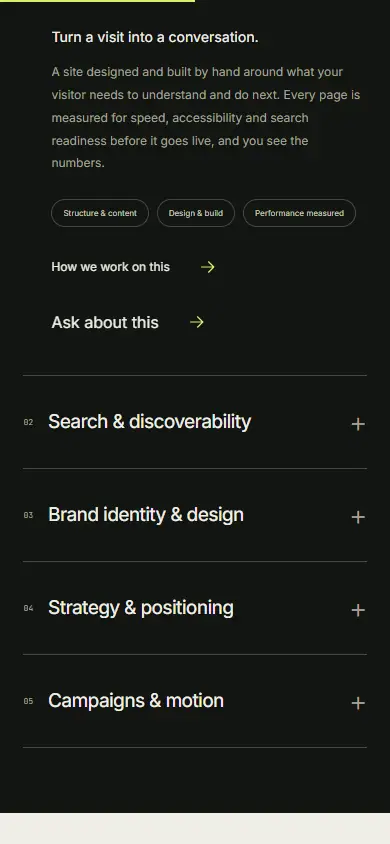

Before, halfway: the services list.
After

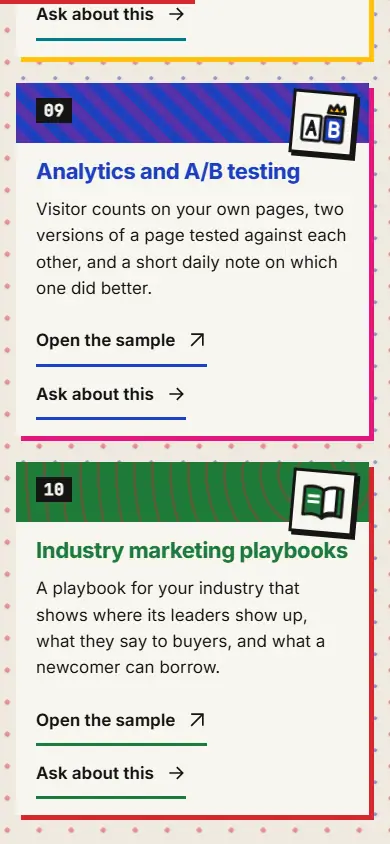

After, halfway: the last two service cards on the pale ground.
75%
Before

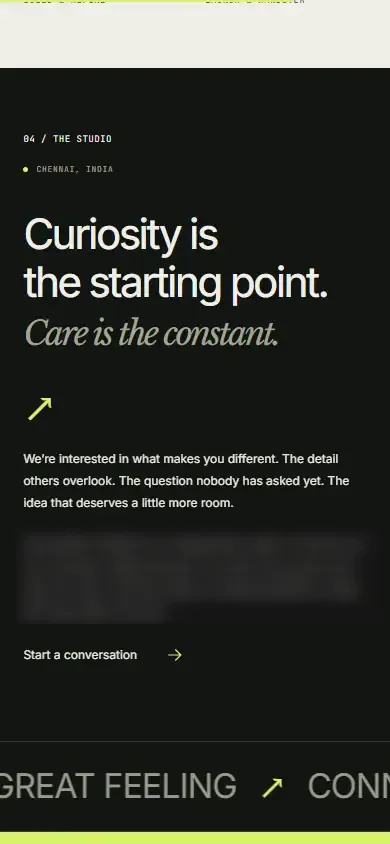

Before, three quarters down: the studio section.
After

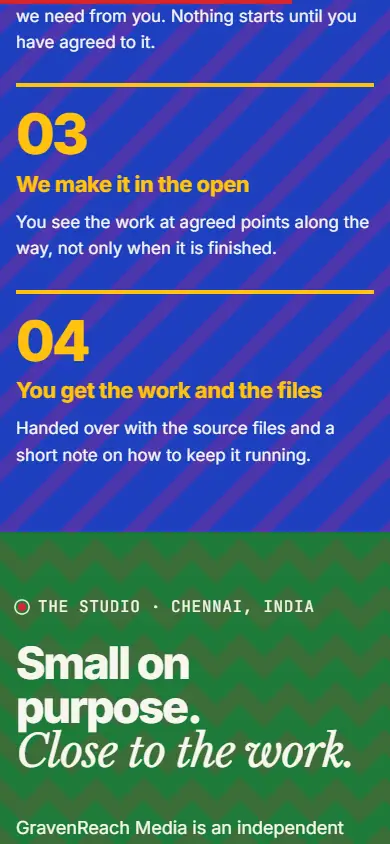

After, three quarters down: the process steps.
100%
Before

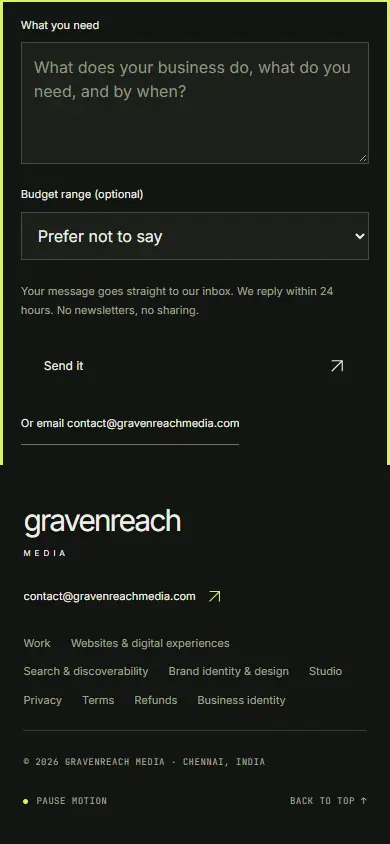

Before, bottom: contact form and footer.
After

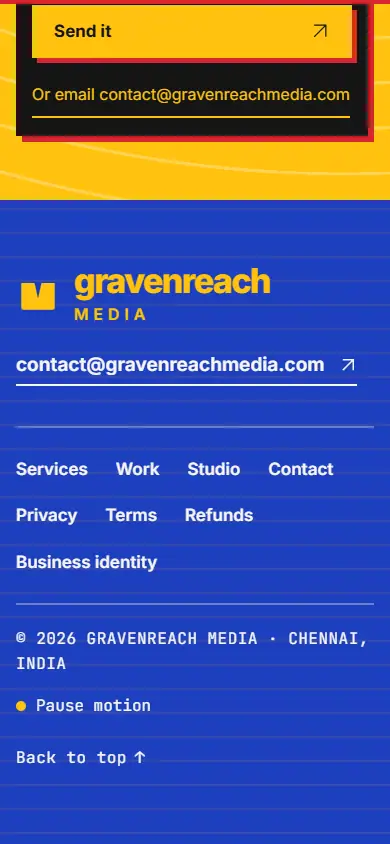

After, bottom: contact form and footer.
03 · States

What changes when you touch it.

The menu, tapped open at 390 pixels

Before opens a dark panel with Work first. After opens a yellow panel with Services first. Both keep the button to talk to us in view.

Before

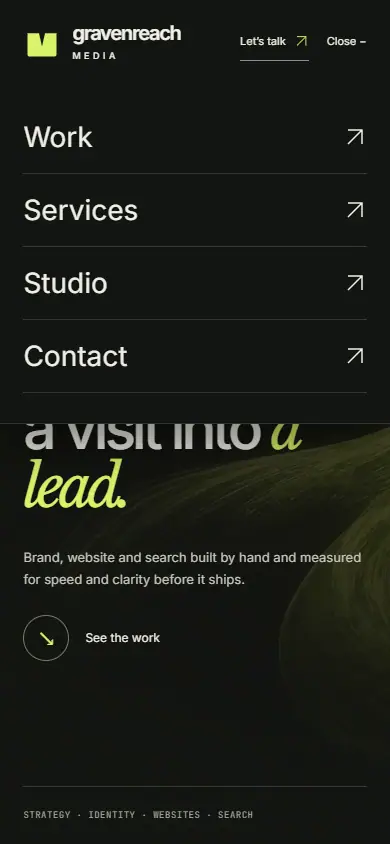

Before, menu open: Work, Services, Studio, Contact on a dark panel.
After

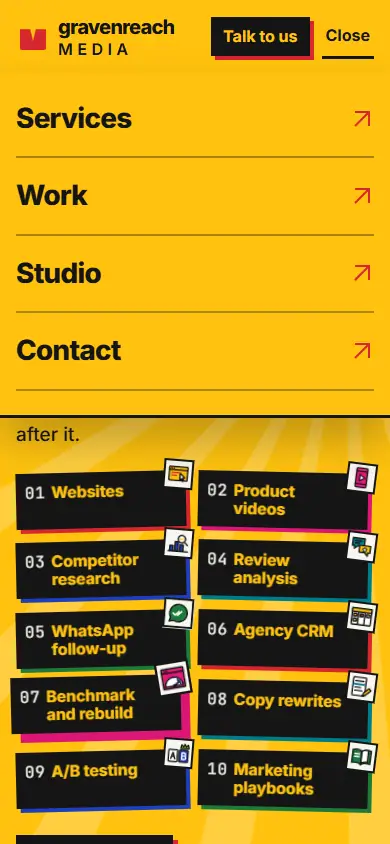

After, menu open: Services, Work, Studio, Contact on a yellow panel.

A menu link, at rest and under the pointer at 1440 pixels

Before draws a thin green line under the link. After draws a thick red bar.

Before
Rest

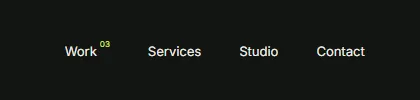

Before, menu links at rest.
Pointer on Work

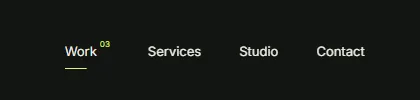

Before, a thin green line under Work.
After
Rest

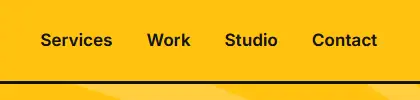

After, menu links at rest.
Pointer on Services

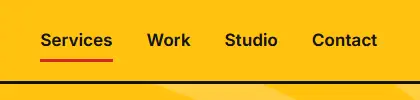

After, a red bar under Services.

The main button, under the pointer at 1440 pixels

Before, the hero’s first action is See the work: its ring fills green and the arrow turns. After, it is Talk to us: the button lifts and leaves a hard shadow.

Before
Rest

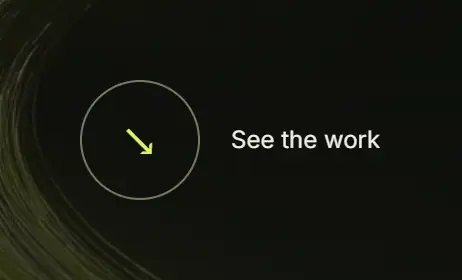

Before, See the work with an outlined ring.
Pointer on it

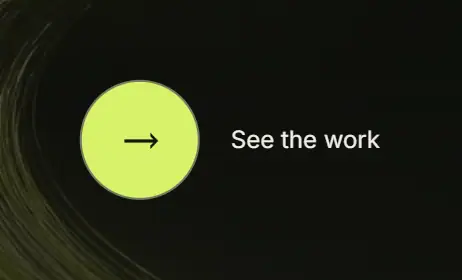

Before, the ring filled green with the arrow pointing right.
After
Rest

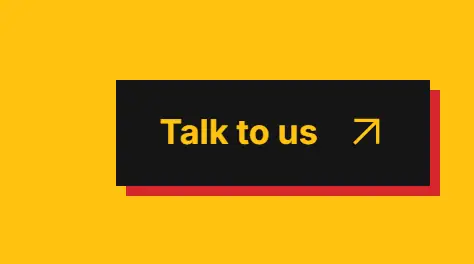

After, a black Talk to us button.
Pointer on it

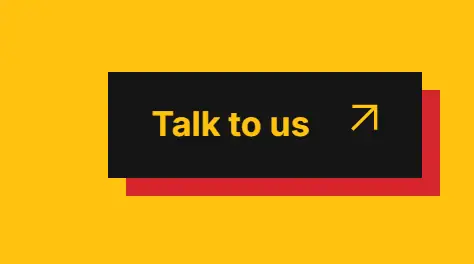

After, the button raised with a hard shadow.

The main button, tapped at 390 pixels

Before, the tap scrolls down to the work. After, it opens the enquiry form over the page.

Before, after the tap
Before, after tapping See the work: the selected work section, one client card blurred.
After, after the tap

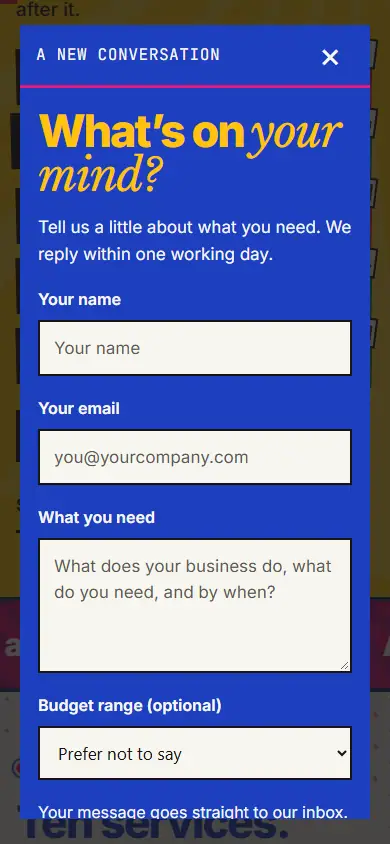

After, after tapping Talk to us: a blue enquiry form asking for name, email and what you need.
04 · Motion

Two frames, 1.5 seconds apart.

The top of each page at 390 pixels, left alone with no scrolling or touching. The two frames are compared pixel by pixel.

Before

Did not move.

0.0 s
Before, first frame of the hero.
1.5 s
Before, second frame of the hero, the same as the first.

0.01% of pixels changed at 390 pixels, and none at 768 or 1440. The green swirl is a still picture once the page has loaded.

After

Moved.

0.0 s

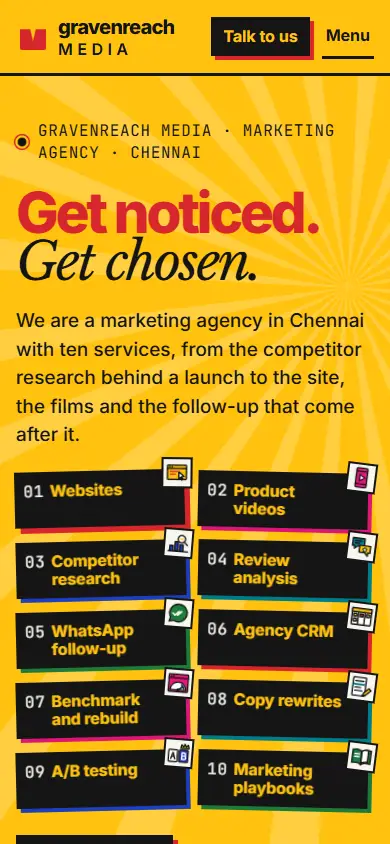

After, first frame of the hero with sun rays.
1.5 s

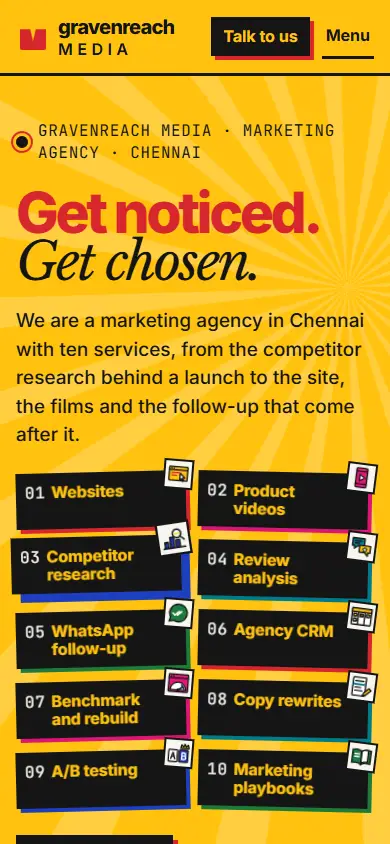

After, second frame, the rays turned a few degrees.

39% of pixels changed at 390 pixels, 33% at 768 and 36% at 1440. The rays behind the headline keep moving while you read.

05 · Transport

What a phone downloads, and how fast it draws.

Every request the home page makes on a first visit at 390 pixels, with the cache switched off, then Lighthouse on its mobile settings, three runs each, middle result shown.

Requests

Fewer is better.

Before28
After19

Weight over the wire

Compressed, as sent. Lighter is better.

Before567 KB
After234 KB

Lighthouse performance

Out of 100, on a simulated phone and mobile connection. Higher is better.

Before82
After100

Largest paint

Time until the biggest thing on screen is drawn. Sooner is better.

Before4.2 s
After1.1 s

Time the page blocks the phone

While this runs, taps wait. Less is better.

Before30 ms
After40 ms

Accessibility, best practices, search

The other three Lighthouse scores, out of 100.

Before100 · 100 · 100
After100 · 100 · 100

Where the weight goes

Compressed kilobytes, with the number of requests in brackets.

KindBeforeAfter
Pictures188 (3)0 (0)
Fonts175 (4)90 (3)
Scripts176 (12)122 (9)
Styles13 (2)11 (2)
The page itself10 (1)9 (1)
Data and other5 (6)3 (4)
From other companies’ servers2 of 280 of 19

The new page makes 9 fewer requests and sends 234 KB against 567, about two fifths of the weight. It carries no photographs and one font file fewer. It draws its main content in 1.1 seconds against 4.2.

Both pages keep the phone free for taps: 40 ms of blocked time after, 30 ms before. Lighthouse marks 90 and above as good. The new build scores 100 and the live one 82.

Before was measured over the network from the live address. After was measured on our own machine, sent compressed the way the live host sends it. Lighthouse 12.8. Scores move a few points from run to run; one of the three after runs scored 93.

06 · Structure

The sections, in order.

Each section as it appears top to bottom, with its heading and its height on a phone.

Before

  1. HeroA website that turns a visit into a lead.760 px
  2. WorkBuilt, shipped, measured.1,252 px · 2 projects
  3. IntroThe world is loud. Let’s make something worth listening to.573 pxDropped
  4. ServicesOne idea. Every touchpoint.1,246 px · 5 services
  5. ProcessA clear path. Room for the unexpected.806 px · 4 steps
  6. StudioCuriosity is the starting point. Care is the constant.673 px
  7. ContactLet’s make something matter.1,184 px

After

  1. HeroGet noticed. Get chosen.946 px
  2. ServicesTen services. One agency.4,536 px · 10 services
  3. WorkOpen the work.889 px
  4. ProcessPlain steps. No surprises.1,150 px · 4 steps
  5. StudioSmall on purpose. Close to the work.637 px
  6. ContactTell us what you’re launching.1,418 px

Services moved from fourth to second and grew from five to ten. The intro section was dropped. Work moved down one place. Both pages keep one top heading and end on a contact form above the footer.

07 · Order a capture

Point us at a site.

A site you admire, or your own. We record it before anyone touches it.

The full record. Every page you name at phone, tablet and laptop widths, full length and scrolled; the menus, links and buttons in each state; what moves and what does not; every request with its weight; the Lighthouse scores; the sections and headings in order.

The side by side. If we rebuild the site, you get the same record of the new build next to the old one, as on this page, so you can see exactly what changed.

Captures of other people’s sites are delivered privately to you and never published. This page shows our own site because it is the only one we are free to show.
